Linear X Unified Crossover Circuits. These crossovers solve one of the most difficult problems in passive crossover design, the effect of driver impedance changes due to frequency, power dissipation impedance change and power compression effects of a given set of drivers operating a very high power levels. The effect of a drivers impedance cannot change the relationship of the Linear X high/low pass filter. The only effect of an impedance shift has on the Linear Phase crossover is that it will either raise or lower the crossover frequency a small percentage depending on the net direction of the impedance shift. The relationship of the slope for the low/high pass filter remains constant. The end result is there are no peaks or valleys at the crossover point. This design yields a Linear crossover point transfer. Since the circuit uses a set of "Unified" components the phase relationship between filters also remains constant. Linear X is the only crossover on the market with this unique design. These crossovers are also extremly well suited for studio reference system designs (their original application). Please let us know what frequency's and how many crossover points are required for your system and we can build a Linear X crossover for it.
For 3 way (or more) crossovers please contact us for information

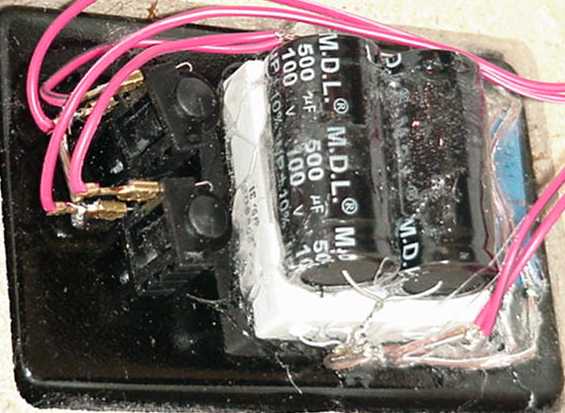

Powermax Speaker Protection System
The Lynx Transducers "Powermax" protection system is an industry first. Unlike other protection systems, fuses, circuit breakers, light bulbs, etc. The "Powermax" system monitors the system power applied to each cabinet and will selectively insert additional fixed resistance into the affected cabinets driver circuit to reduce the applied power by 1/2 during an accidental overload. The cabinet continues to operate but at a slightly reduced volume (-3dB) during the overload. The "Powermax" power limiting approach maintains the response linearity of the cabinet, unlike the low cost "light bulb" approach, some of the other manufactures use in their designs, which ads noticeable distortion to the sound when overloaded. Once the overload has been cleared the Powermax system will automatically reset to normal operation after a brief cooling off period. The bottom line is this: Accidents happen from time to time. The "Powermax" driver protection system gives your expensive drivers the ultimate protection against an
accidental overload that would destroy other systems or render them "dead" during a performance. The "Powermax" system also incorporates a passive 12dB / octave 20 Hz high pass filter for protection against dropped microphones and sub-sonic resonance feedback that can damage the drivers by exceeding the speakers Xmax (Maximum mechanical excursion limits) at extremely low frequency's.
Powermax Systems
Please Specify 2, 4, 8 or 16 ohm
Powermax Fail-safe Driver Protection System PM-300
For drivers rated between 275 to 350 Watts RMS/Cabinet
$75.00
Powermax Fail-safe Driver Protection System PM- 400
For driver rated between 351 to 425 Watts RMS/Cabinet
$80.00
Powermax Fail-safe Driver Protection System PM-450
For driver rated between 426 to 500 Watts RMS/Cabinet
$85.00
Powermax Fail-safe Driver Protection System PM1-550
For driver rated between 501 to 600 Watts RMS/Cabinet
$95.00
Powermax Fail-safe Driver Protection System PM-700
For driver rated between 601 to 800 Watts RMS/Cabinet
$115.00
Powermax Fail-safe Driver Protection System PM-900
For driver rated between 801 to 1,000 Watts RMS/Cabinet
$140.00
Powermax Fail-safe Driver Protection System PM-1100
For driver rated between 1,000 to 1,300 Watts RMS/Cabinet
$195.00
For more information or to order
Please Call
(727) 804-9753 M-F 8-5 EST
